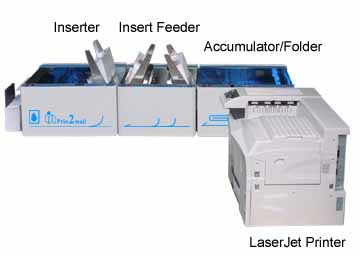

- LaserJet - 50 PPM , Duplex. |
|
|
- Accumulator/Folder |
- Keeps media in ascending sequence. |
|
- To group contents of each mail. |
|
|
- Collates, Folds up to 6 sheets Z-Fold, 12 sheets V-Fold. |
|
|
- Feeder - Intelligent inserting up to 6 inserts. |
|
|
- Insertion Base - Inserts collated media into #9 , #10 , 6*9 , DL and C6 Envelope. |
|
- Inline, on Demand with most Landscape feed LaserJet.
- Prints, collates, multiple sheets folds, enclosures, inserts and seals mail in one pass.
- No special printer, printer driver or application software required.
- No skilled operator needed
- Decentralize mail preparation possible.
- Table Top, Heavy Duty, 120,000/month Duty Cycle.
- Dual OMR Mark ensures accuracy and integrality.
¡@
| Production Speed | 3,000 pieces per hour | |
| Printer Control | No direct electronic or mechanical interface with printer | |
| Mechanical Buffer | Preventing interactive jam between system and printer | |
| Envelope Size: | #9 , #10 , 6*9 , DL , C6
|
|
| Media Size: | A4 or 8 1/2 * 11". | |
| Maximum Thickness: | 6 sheets Z-fold or its equivalent. | |
| Collating Control: | Built-in OMR | |
| Fold Type: | Z , V | |

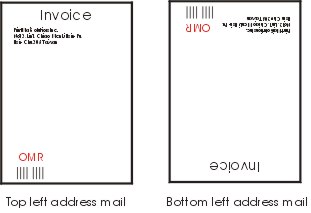

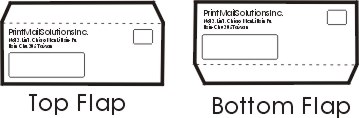

| Applications: | Top left address mail uses top flap envelope.
Bottom left address mail uses bottom flap envelope.
|
|
| Envelope Feed: | Bottom Feed, Top Continuous Load. | |
| Feeder: | Up to 6-stations for BRE and pr-printed insert | |
| Electricity: | 115V / 60Hz | |
| ¡@ | D * W * H | Weight |
| - Printer | 25" * 24" * 24" | 134 lbs |
| - Accumulator/Folder | 26" * 18" * 13" | 86 lbs |
| - Insert Feeder | 14" * 18" * 26" | 68 lbs |
| - Inserter | 26" * 18" * 13" | 97 lbs |
